Aluminium lift-up sliding door

With Tecnoplast aluminium lift-up sliding doors you can have optimum energy-saving performance without foregoing security. Thanks to thermal break aluminium profiles, solidity, thermal insulation and soundproofing are combined with a minimalist design that gives the whole structure a sense of lightness. Available with a reduced threshold and strengthened, reinforced central element.

Available profiles

The profile is the heart of the window or door, and is responsible for thermal insulation and soundproofing performance as well as design. Discover the profiles available for sliding aluminium doors.

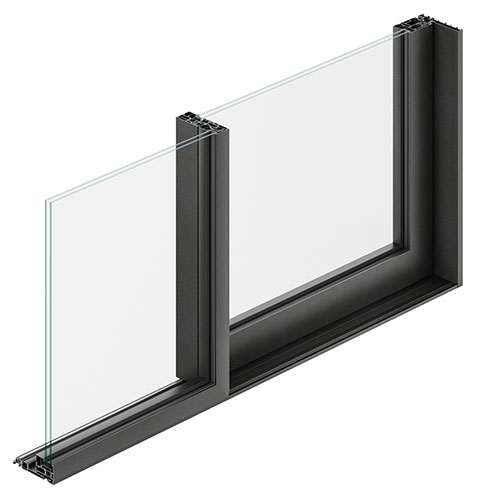

System 1600 SA

Uw: 1.70 W/m2K with glass Ug = 1.0 W/m2K
Sound insulation: up to 42 dB
Air permeability: up to class 4
Resistance to driving rain: up to E1350

Performance

System 1600 SA

Reduced sash profile, square and modern design and thermal insulation break aluminium profiles to give our products stability and lightness, together with excellent thermal insulation performance levels. Technical Specifications: L Min= 1500; L Max= 5000; H Min= 1200; H Max= 3000 Maximum supported weight per sash: 400kg

What they are suitable for

Our lift-up sliding doors are perfect for areas with large glazed surfaces. Thanks to their lift-up technology the weight of the door is supported by the mechanism, permitting glazed doors of significant size with a load of up to 400Kg per door. Available in a full range of colours, they are a prestigious and uncompromisingly elegant choice.

  • A prestigious, functional choice.
  • Ideal for living areas with large glazed surfaces.
  • Available in a wide range of colours and finishes to suit your every need.

Optionals

Handle

Choose from a full range of different finishes for handles, to blend in perfectly with the colours in your home.

Air conditioning sensor

Fit sensors for the air conditioning system directly into the window so that the air conditioning stops operating when the window is open. This will keep the temperature of your home under control at all times without the need for visible cables or wires.

Alarm sensor

Make your doors and windows even safer without visible cables, by preparing them to house alarm sensors.

Finishes for Aluminium sliding doors

GO TO ALL FINISHES
Ruggine Ultra / Codice BDGG11
Verde / Codice GRIVE
Noce Opaco / Codice UBNC43
